Double Glazing vs Single Glazing: The Complete Comparison Guide for Homeowners

What Is Double Glazing?

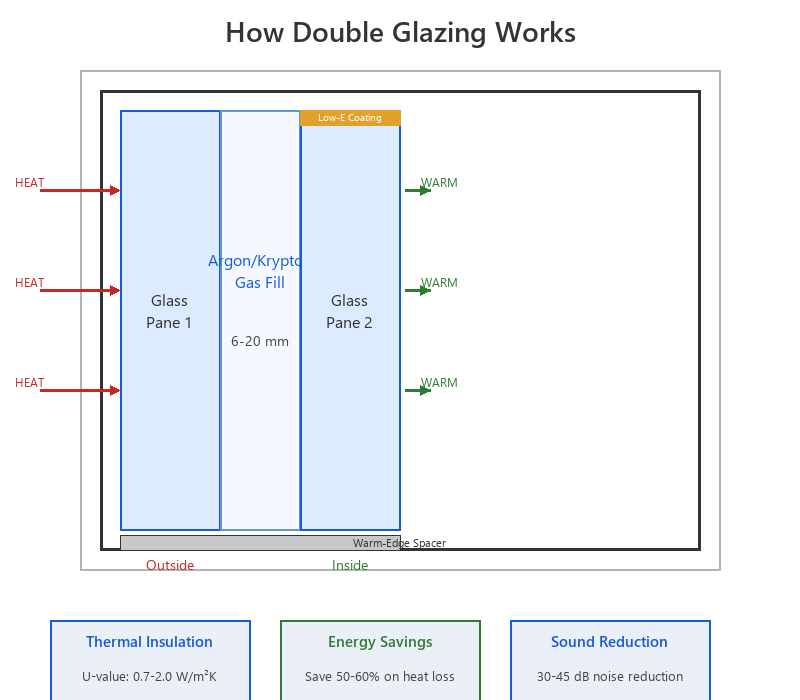

Double glazing (also called double glazed windows or insulated glass units) is a window construction method that uses two panes of glass separated by a spacer bar and sealed as a single hermetically sealed unit. The space between the panes — typically 6 mm to 20 mm wide — is filled with an insulating gas such as argon, krypton, or xenon, all of which have significantly lower thermal conductivity than plain air.

The combination of two glass layers plus the gas-filled cavity creates a powerful thermal barrier. Heat transfer is reduced through three mechanisms:

• Conduction — The gas layer conducts far less heat than solid glass or still air.
• Convection — The sealed cavity minimizes internal air circulation that would carry heat across the gap.
• Radiation — Low-E (low-emissivity) coatings applied to the glass surfaces reflect radiant heat back into the room while allowing sunlight to pass through.

Modern double glazed units also feature warm-edge spacer bars made from materials like stainless steel or thermoplastic, which reduce heat loss at the edges and minimize condensation risk.

What Is Single Glazing?

Single glazing is the traditional window style consisting of a single pane of glass mounted in a frame. While it remains the cheapest option at the point of purchase, single glazing offers the lowest thermal performance of any window type available today.

With a typical U-value between 4.5 and 5.8 W/m²K, a single glazed window loses heat approximately three to four times faster than a standard double glazed unit. In cold weather, the inner surface of a single pane becomes very cold, leading to:

• Severe condensation — Moisture in warm indoor air condenses on the cold glass surface, leading to mold growth and window frame damage.
• Cold drafts — The cold glass creates convection currents that make rooms feel drafty even when sealed.
• Poor sound insulation — A single pane of glass offers minimal resistance to external noise.

Single glazing is still found in many older buildings and heritage properties worldwide. However, most modern building codes — including UK Building Regulations Part L, Australian Standard AS2047, and US IECC codes — now require minimum thermal performance levels that single glazing simply cannot meet for habitable rooms.

Double Glazing vs Single Glazing: Side-by-Side Comparison

Here is a detailed comparison of the key performance metrics for double glazing vs single glazing:

Energy Efficiency: Understanding U-Values and R-Values

When researching double glazing vs single glazing energy efficiency, you will encounter two key measurements: U-value and R-value. While R-value is commonly used for wall insulation, U-value is the standard metric for windows.

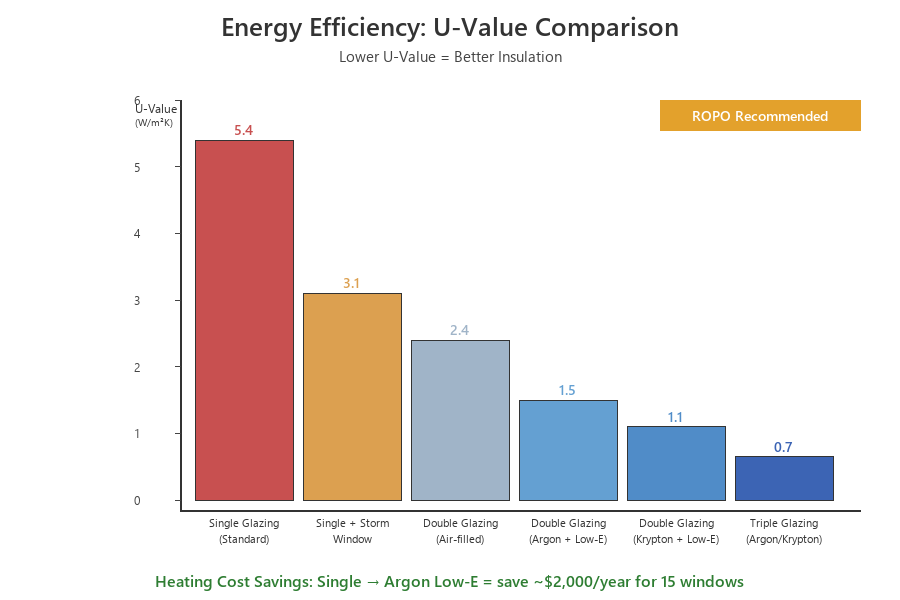

The U-value measures the rate of heat transfer through a window — a lower U-value means better insulation. Here is how different window configurations compare:

For a typical home with 15 windows, switching from single glazing to argon-filled double glazing with Low-E coating can save $1,500 to $2,800 per year in heating and cooling costs, depending on your local climate and energy prices.

Soundproofing: Double Glazing vs Single Glazing

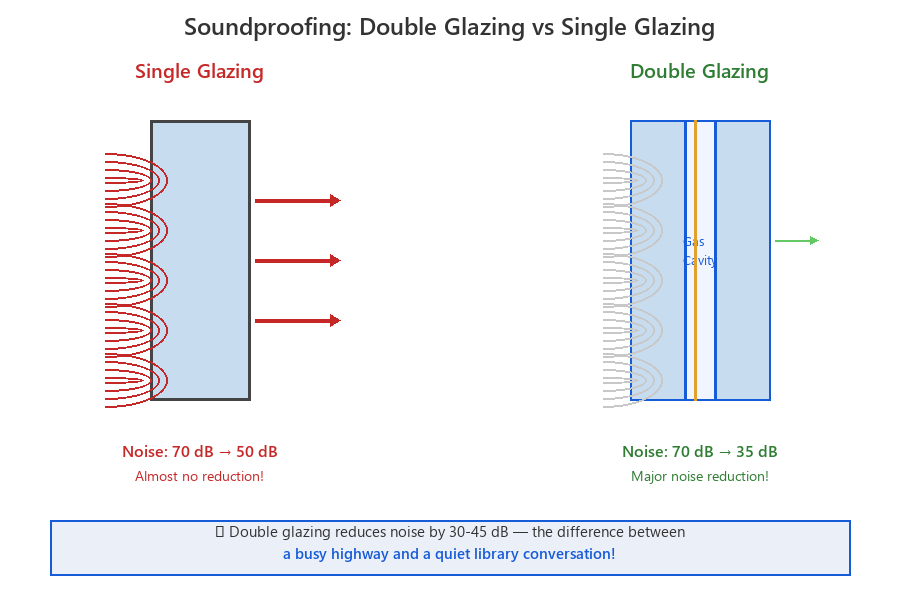

Double glazing vs single glazing soundproof performance is a major consideration for homes in noisy environments. The physics is straightforward: sound waves lose energy each time they pass through a different density medium. In a double glazed unit, sound must travel through:

1. The outer pane of glass
2. The gas-filled cavity (which dissipates acoustic energy)
3. The inner pane of glass

This layered approach reduces noise by 30 to 45 decibels, compared to just 20 to 25 dB for single glazing. To put this in real-world terms:

• A busy road at 70 dB sounds like light traffic at 40 dB through double glazing
• A nearby airport at 80 dB sounds like normal conversation at 45 dB through double glazing
• With single glazing, the same 70 dB noise would still register at 50 dB — equivalent to a normal conversation indoors

For homes near highways, airports, railway lines, schools, or busy urban streets, upgrading to double glazing can dramatically improve sleep quality, concentration, and overall quality of life.

Condensation Resistance: A Crucial Difference

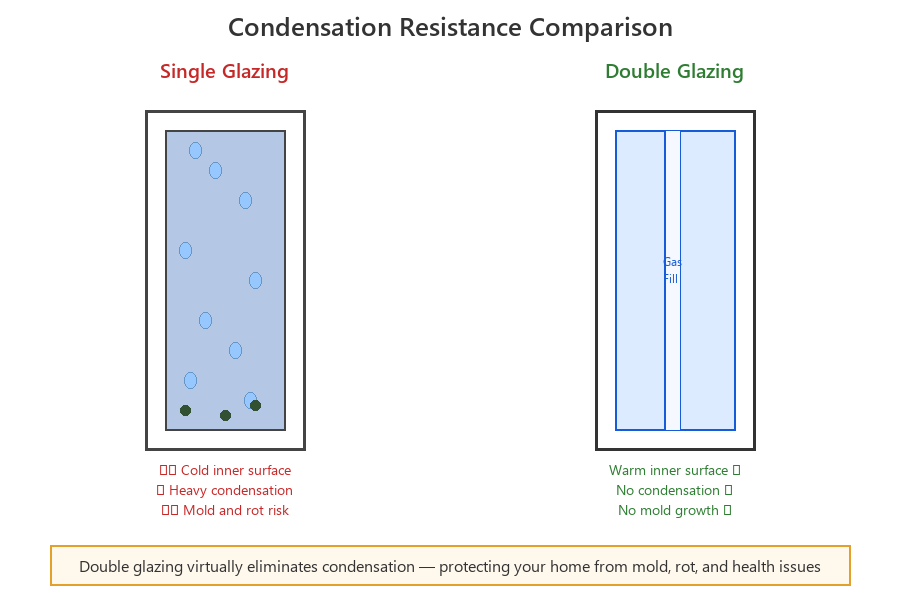

One often overlooked aspect of the double glazing vs single glazing comparison is condensation. Single glazing is notorious for condensation issues because the inner surface temperature of a single pane drops well below the dew point of indoor air in cold weather.

Double glazing keeps the inner pane significantly warmer thanks to the insulating gas layer. With warm-edge spacer bars and Low-E coatings, modern double glazed units virtually eliminate interior surface condensation. This not only improves comfort and visibility but also prevents:

• Black mold growth around window frames
• Rotting timber frames from moisture damage
• Staining of walls and curtains below windows
• Respiratory health issues from mold spores

Climate Considerations: Which Window Type for Which Region?

The choice between double glazing and single glazing is heavily influenced by your local climate. Here is a climate-based recommendation guide:

Even in mild tropical climates where temperature differences are smaller, double glazing still offers significant benefits in noise reduction, security, and condensation resistance that make it a worthwhile investment for most homeowners.

Double Glazing vs Triple Glazing: When to Upgrade Further

Some homeowners considering double glazing vs single glazing also wonder whether triple glazing might be an even better choice. Triple glazing adds a third pane of glass and a second gas cavity, achieving U-values as low as 0.5 W/m²K. However, it comes with trade-offs:

For the majority of homeowners, especially in temperate climates, high-quality double glazing with Low-E coating and argon gas fill delivers 90% of the performance benefit at 60–70% of the cost of triple glazing. Triple glazing is best reserved for extremely cold climates (average winter temperatures below -15°C), passive house (Passivhaus) construction, or homes where noise from aircraft or railways is extremely severe.

Installation Considerations: Getting It Right Matters

Even the best windows will underperform if installed incorrectly. When upgrading from single glazing to double glazing, proper installation is critical to achieving the full performance benefits:

• Correct sizing — Double glazed units are thicker and heavier than single panes. Frames must be selected or adapted to accommodate the extra weight.
• Weather sealing — Proper sealing around the frame prevents air leakage, which can negate up to 30% of the thermal benefit.
• Slope sills — Ensure external sills are sloped away from the building to prevent water pooling and ingress.
• Ventilation consideration — Double glazing makes homes more airtight. Ensure adequate ventilation (trickle vents or mechanical systems) to maintain indoor air quality.

Frequently Asked Questions About Double Glazing
