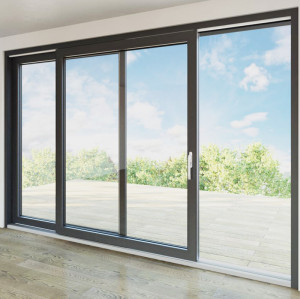

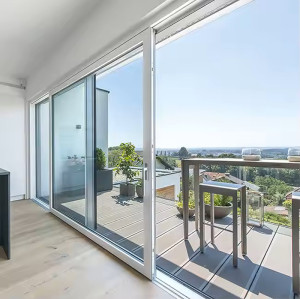

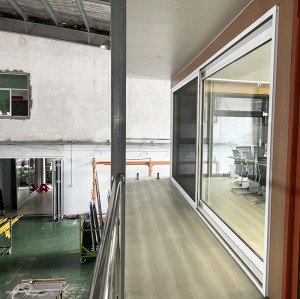

Thermally Broken Aluminum Frame Lift And Slide Sliding Doors, Lifting Sliding Glass Door, Air Tightness, Double Glazed, For Commercial, Villa, Garden
Thermally Broken Aluminum Frame Lift And Slide Sliding Doors, Lifting Sliding Glass Door, Air Tightness, Double Glazed, For Commercial, Villa, Garden
Thermally Broken Aluminum Frame Lift And Slide Sliding Doors, Lifting Sliding Glass Door, Air Tightness, Double Glazed, For Commercial, Villa, Garden
Thermally Broken Aluminum Frame Lift And Slide Sliding Doors, Lifting Sliding Glass Door, Air Tightness, Double Glazed, For Commercial, Villa, Garden
Thermally Broken Aluminum Frame Lift And Slide Sliding Doors, Lifting Sliding Glass Door, Air Tightness, Double Glazed, For Commercial, Villa, Garden
Model
Aluminum Lift and Sliding Doors 002

Item specifics

Profile Color
White / Black / Grey / Customized Color
Profile Brand
JMA 6063-T5
Hardware
German Hautau / German Roto
Glass
Single / Double / Triple / Laminated / Low E
Screen
Accordion / Sliding Screen / Security Screen

Review

Description

Product Introduction
Lift and Sliding Door

Lift and slide doors are unique thanks to the lifting mechanism. How this works is when you turn the knob to the unlock position, it pulls the wheels sideways then down to lift the door off its seals. From here, you're able to move the door almosst effortlessly as you see fit.

  •  300Pa

    Water Pressure
  •  3000Pa

    Ultimate Wind Pressure
  • 2.1

    U Value
  • 0.37

    SHGC Value
Aluminum Lift and Slide Door
Product Video

Effortless maneuvering:

Our systems are equipped with a high-quality HAUTAU mechanism to make handling smooth and effortless. Even massive panels weighing 300 to 400 kg can easily be moved with one hand.  Also, the guide rail system we use can be recessed into the floor, making it simpler for people with disabilities to get in and out of the home.

Minimalist design:

The current trend in home design joins modern lines and minimalist aesthetics. Open spaces and natural light are favoured because of their mood-boosting abilities. We wanted to create a lift and slide system that will be in harmony with your living space. This is why we worked on creating the thinnest frames possible. We offer them in a large selection of colours and with fully customizable handles and dimensions.

Panoramic view:

Since the lift and slide system is so easy to maneuver, it allows for unusually large panes of glass. We use aluminum as a material for the frame, because of its great properties. It is so solid that we can create a minimal profile to let you enjoy the view, almost forgetting that you are indoors! Basically, aluminum ensures the highest glass-to-frame ratio. This means that we can achieve the most unobstructed view on the market today.

Product PDF
Aluminum Lift and Sliding Door Drawing Section
Aluminum Lift and Sliding Door Intertek Report
Product Details Map
Corner Profile :

Multi-chambered frame, JMA Window System (http://www.jma.cn/en/index.php ), 6063-T5, and The Powder Coating is from German Interpon (AkzoNobe Group) (https://www.interpon.com/cn ) for UV resistance. 10 Years Warranty.
Aluminum Lift and Slide Door Corner Profile
Aluminum Lift and Slide Door detail
Details :

1, Silicon Sealant-U.S.A Brand DOW CONING
2, Glass Bead- All glass sealed by glass bead, not silicone. so if the glass is broken, it is easy to change.
3, Rubber strip is EPDM for good sealent and 10 years warranty.
4, All screwn is stainless steel to resist corrosion

Aluminum Lift and Slide Door Hardware
Hardware :
Heavy duty hinge with 304 stainless steel for maximum durability.
Multi-point stainless steel locking device for enhanced security.
Aluminum Lift and Slide Door Configurations
Configurations :

One panel Lift and sliding door opening width should be limited in 2000mm, the door height is better smaller than 3000mm for maximum using experience and durable.
If the lift and sliding door width bigger than 4000mm, we suggest three panels style or with fixed parts.
Glass Should Be Selected On The Basis Of Thermal Insulation Requirement, Sound Insulation Requirement And Safety Requirement.
